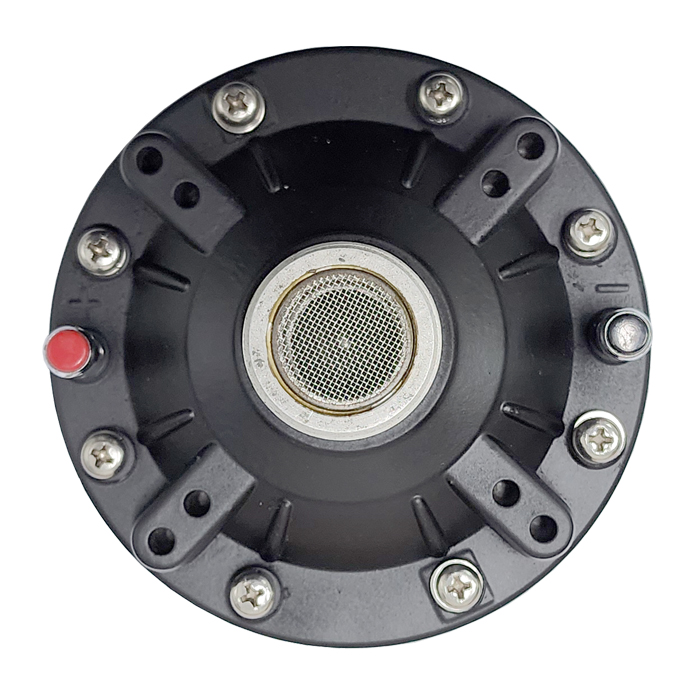

PA-D250N
Features
- 250 W continuous program power capacity
- 0.87″ Horn throat diameter
- 63.5 mm (2.5 inch) voice coil
- Phenolic resin diaphragm
- 200 – 5000 Hz response
- 110 dB sensitivity
General Specifications
General Specifications
| Throat Diameter | 22 mm (0.87 in) |
|---|---|
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W(AES) |
| Continuous Program Power Capacity | 500 W |
| Sensitivity | 110 dB |
| Frequency Range | 200-5000 Hz |
| Voice Coil Diameter | 63.5 mm (2.5 in) |
| Winding Material | Round Copper Wire |
| Recommended Crossover | 500 Hz 12dB/OCT |
| Diaphragm Material | Phenolic Resin |
| Flux Density | 1.3T |
| Magnet Material | Neodymium |
| Mounting Type | Bolt On |
Mounting and Shipping Information
Mounting and Shipping Information
| Overall Diameter | 116 mm (4.5 in) |
|---|---|
| Mounting Hole Diameter | G18- Ø 34.2 mm |
| Depth | 78.3 mm (3.08 in) |
| Net Weight | 1.6 kg / 3.5 lb |
| Shipping Units | 1 pc |
| Shipping Weight | 1.8 kg / 3.9 lb |
| Shipping Box | 250 x 130 x 220 mm |
Service Kit
Service Kit
| Replacement Coil | Service Kit |
|---|
